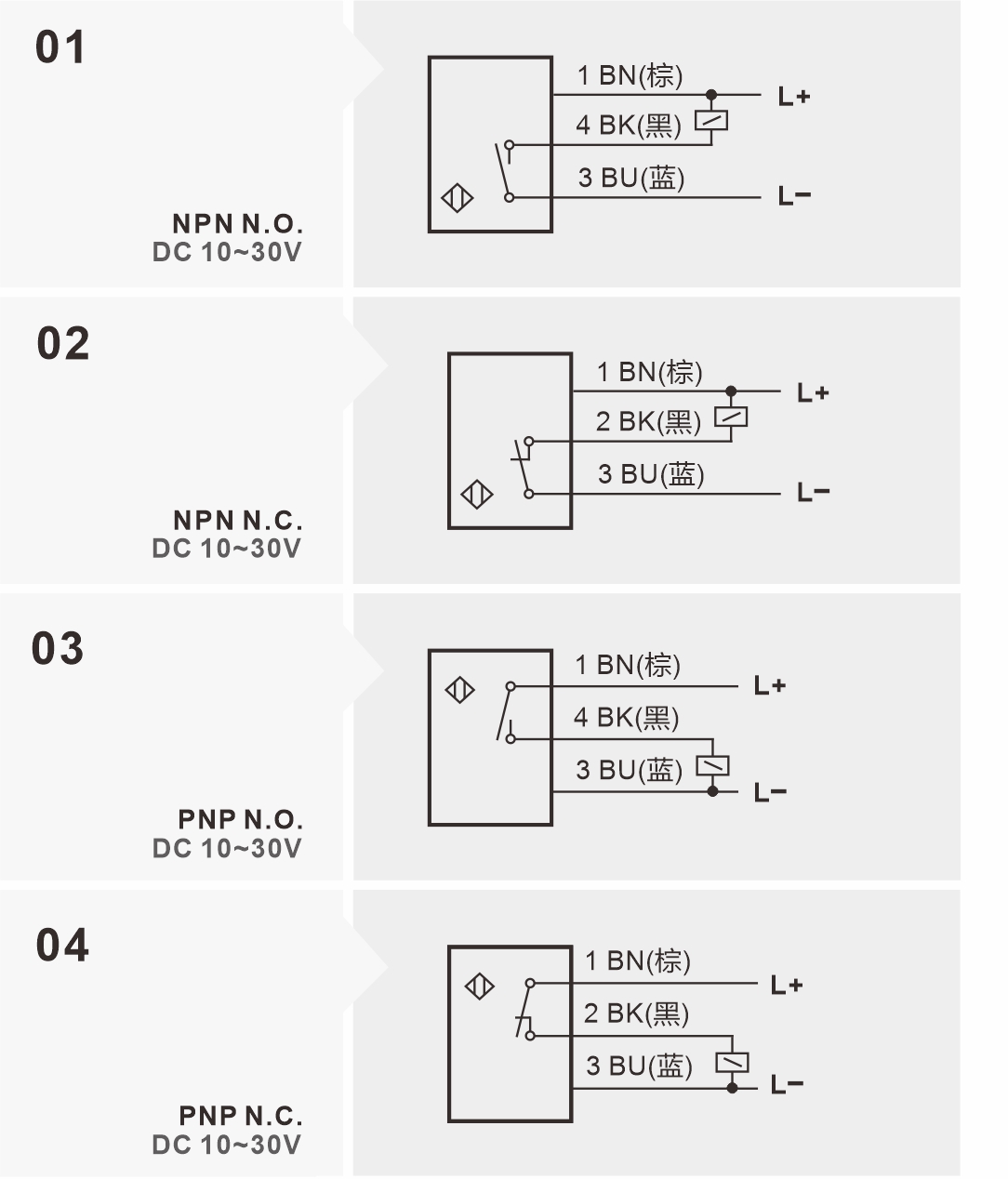

| 直流-3线/DC-3 wires NPN N.O. | PSPVC-D100NA-D3Y2 | |
| 直流-3线/DC-3 wires NPN N.C. | PSPVC-D100NB-D3Y2 | |
| 直流-3线/DC-3 wires PNP N.O. | PSPVC-D100PA-D3Y2 | |
| 直流-3线/DC-3 wires PNP N.C. | PSPVC-D100PB-D3Y2 | |
| 直流-4线/DC-4 wires NPN (N.O./N.C.) | PSPVC-D200NS-D4Y2 | |
| 直流-4线/DC-4 wires PNP (N.O./N.C.) | PSPVC-D200PS-D4Y2 | |
|
环境照度/Illumination |
白炽灯：5000lx以下；太阳光：100000lx以下/Incandescent lamp: below 5000lx; Sunlight: below 100000lx | |
| 感应方式/Sensing mode | 漫反射式/Diffuse reflection | |
| 检测距离/Rated sensing distance | 100mm | |
| 标准探测物/Sensing object | 不透明物体 & 半透明物体/opaque & translucent objects | |
| 标准对象/Standard target | 100x100mm(白纸)/100x100mm(white paper) | |
| 响应时间/Response time | ≤1ms | |
| 工作电压/Supply voltage | DC12...24V(10...30V DC)允许波动10%以下/ripple(p-p):10% max. | |
| 输出类型/Output type | NPN & PNP集电极开路输出/NPN & PNP output | |
| 消耗电流/Consumption | ≤10mA | |
| 负载电流/Load current | 200mA | |
| 电压降/Voltage drop(Vp) | ≤2V | |
| LED 显示/Display | 电源-信号指示灯：红色LED；动作指示灯：绿色LED/Power-signal indicator lights: red LED; Action indicator: green LED | |
| 灵敏度调节/ Sensitivity adjustment |
可调/adjustable | |
| 保护/Protection Circuit | 短路保护、反极性保护、过载保护/Short circuit protection, reversed polarity protection and overload protection | |
| 工作温度/Operating temperature | -10...+55°C(未结露状态)/-10...+55°C(no condensation) | |
| 绝缘阻抗/Insulation Resistance | ≥500MΩ(500VDC) | |
| 抗冲击/Anti-impact | 500m/s²(50G)X、Y、Z、方向各10次/500m/s²(50G)X、Y、Zdirection, each 10 times | |
| 抗震动/Anti-vibration | 10...55Hz(振幅1.5mm) X、Y、Z、方向各2小时/10...55Hz(amplitude 1.5mm)X、Y、Z direction each 2 hours | |
| 防护等级/Protection | IP66 | |
| 连接方式/Connection | 电缆线2M，外径Φ3.5mm/Cable: Φ3.5mm 2M | |
| 外壳材料/Housing material | ABS+PC | |
| 附件/Accessories | 螺丝刀1个、金属支架1个、自攻螺丝2个/screwdriver: 1PCS, metal stents:1PCS, self tapping screws:2PCS | |
| 尺寸图 Dimensional drawing |
 |
|
PSPVC -漫反射式- 光电式接近开关
备有宽电压输入20-240VAC/DC电源可选，方便使用
多种输出模式，内置继电器输出功能
具有对射型、镜面反射型、漫反射型等多种检测模式
长检测距离，最远可达几十米
多种输出模式，内置继电器输出功能
具有对射型、镜面反射型、漫反射型等多种检测模式
长检测距离，最远可达几十米
