特点描述 Feature Description

◆ 响应频率高，可进行高速检测

◆ 体积小，重量轻，适合小型物体检测，灵敏度高

◆ 能在恶劣环境中进行非接触式，非破坏检测

◆ 方便的DIN连线安装

◆ 光纤线长度可以调整

规格参数 Specification


型号/Model	FOA-NS-D3Y2	FOA-PS-D3Y2


应答速度/Response time	Max.1ms
工作电压/Supply voltage	12...24V DC ±10%波动, ripple(p-p):10% max.
消耗电流/Consumption	Max.40mA
光源/Light source	红色 LED(调制)/Red LED(Modulated)
灵敏度调节/Sensitivity adjustment	VR调节/Adjustable VR(Dual adjustment:Coarse adjustment,Fine adjustment)

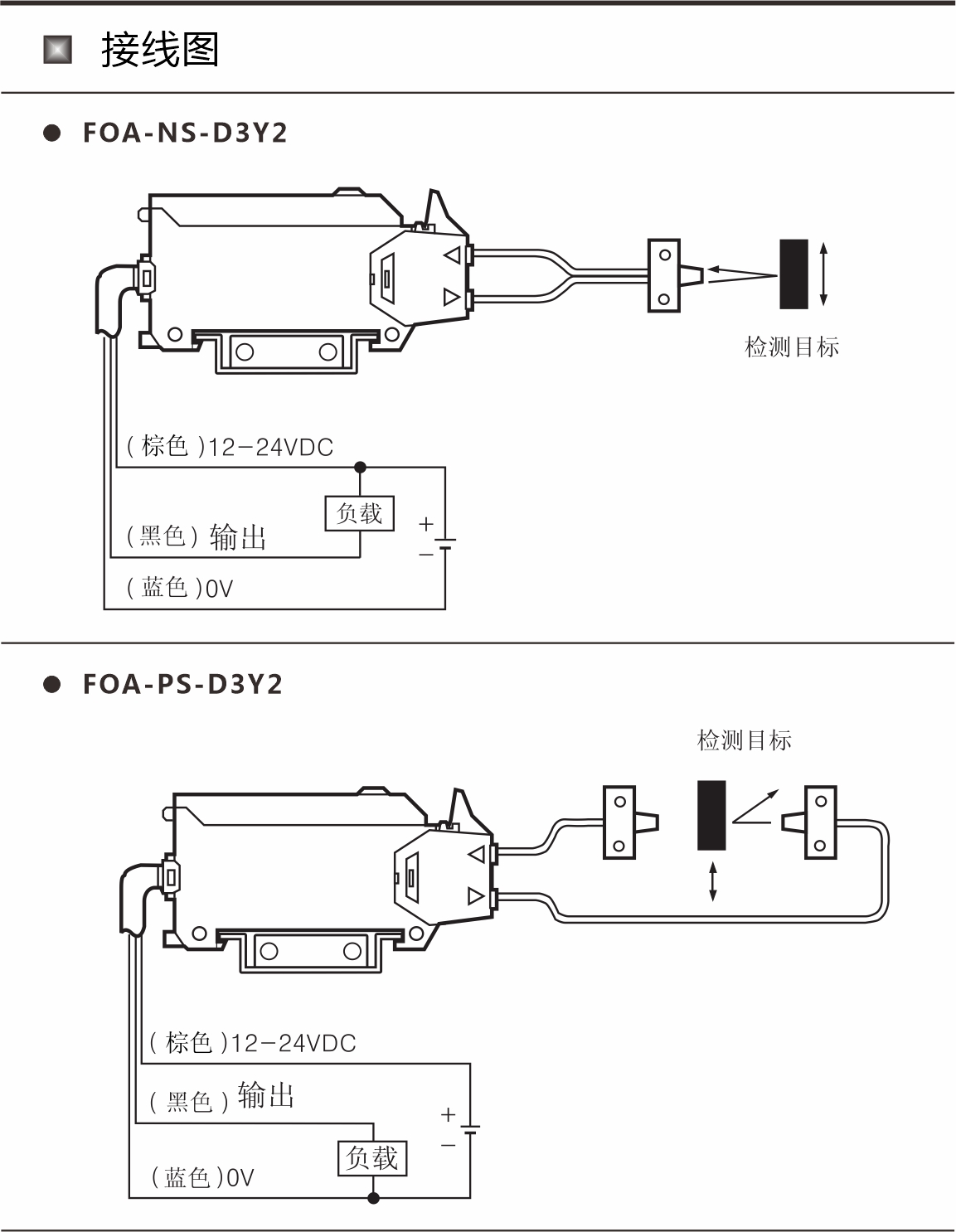

动作方式/Operation mode	NPN 常开、常闭可转换/ NPN N.O.、N.C changeover	PNP 常开、常闭可转换/ PNP N.O.、N.C changeover
控制输出/Control output	负荷电压/Load voltage: Max.30VDC 负荷电流/Load current: Max.200mA 残余电压/Residual voltage:Max.1V	输出电压/Output voltage: Min.(电源电压/Supply voltage-2.5)V 负荷电流/Load current: Max.200mA 残余电压/Residual voltage:Max.1V
保护/Protection Circuit	短路保护、反极性保护、过载保护/Short circuit protection, reversed polarity protection and overload protection
LED 显示/Display	动作指示灯：绿色 LED ; 电源指示灯：红色 LED/Action : Green LED ; Power : Red LED
绝缘阻抗/ Insulation resistance	Min.20MΩ(以500VDC为基准 )/Min.20MΩ(based on 500VDC measuring voltage)
抗冲击/Anti-impact	500m/s²(50G)X、Y、Z、方向各10次/500m/s²(50G)X、Y、Zdirection, each 10 times
抗震动/Anti-vibration	10...55Hz(振幅1.5mm) X、Y、Z、方向各2小时/10...55Hz(amplitude 1.5mm)X、Y、Z direction each 2 hours
抗干扰/Anti-interface	±240V 由干扰模拟器产生的方波(脉冲宽度:1us)/±240V the square wave noise(pulse width:1us)by the noise simulator
耐电压/Withstand voltage	1000VAC 50/60Hz for 1分钟/1000VAC 50/60Hz for 1minute
适应环境/Operating temperature	-10 到 50℃(未结冰状态),储存时:-25到 70℃ & 35 to 85%RH/-10 to 50℃,storage:-25 to 70℃ & 35 to 85%RH
连接方式/Connection	3P, Φ4.8mm, 线长：2m/Cable : ø4.8mm , 2M
材质/Material	外壳:ABS,保护盖:PC/Case:ABS,Cover:PC
附件/Accessory	支架,螺丝,螺母/Mounting bracket, screws, nuts
尺寸图：带支架 Dimensional drawing
尺寸图 Dimensional drawing
